130-L Liquid Fertilizer Applicator

Check out the features of the 130-L Liquid Fertilizer Applicator for Orchards, Vineyards and Row Crops:

  • Fertilizer can be banded beneath the surface and close to the feeder roots maximizing the return on your fertilizer dollars.
  • Sub-surface banding avoids feeding the weeds and cover vegetation.
  • Concentrating the fertilizer can be adjusted to a wide variety of row spacing and drip line configurations.
  • The placement of fertilizer is adjustable to a wide variety of row spacing and drop line configurations.
  • Toolbar positioning is adjustable from the operators seat.
  • Low profile design ensures minimal limb contact in orchard.

Loaded with features, including:

  • Hydraulic toolbar extensions allow the operator to adjust from 96 inch to 156 inch toolbar width on the go.
  • Coulter/Injection assemblies shoot a solid stream of product into the slot created by the coulter.
  • Positive ground drive metering pump ensures accurate application regardless of ground speed.
  • 300 gallon poly tank is durable and non-corrosive.
  • Hydraulic lift toolbar with parallel arm linkage.
  • 51 inch overall height and 62 inch overall width without toolbar extensions.

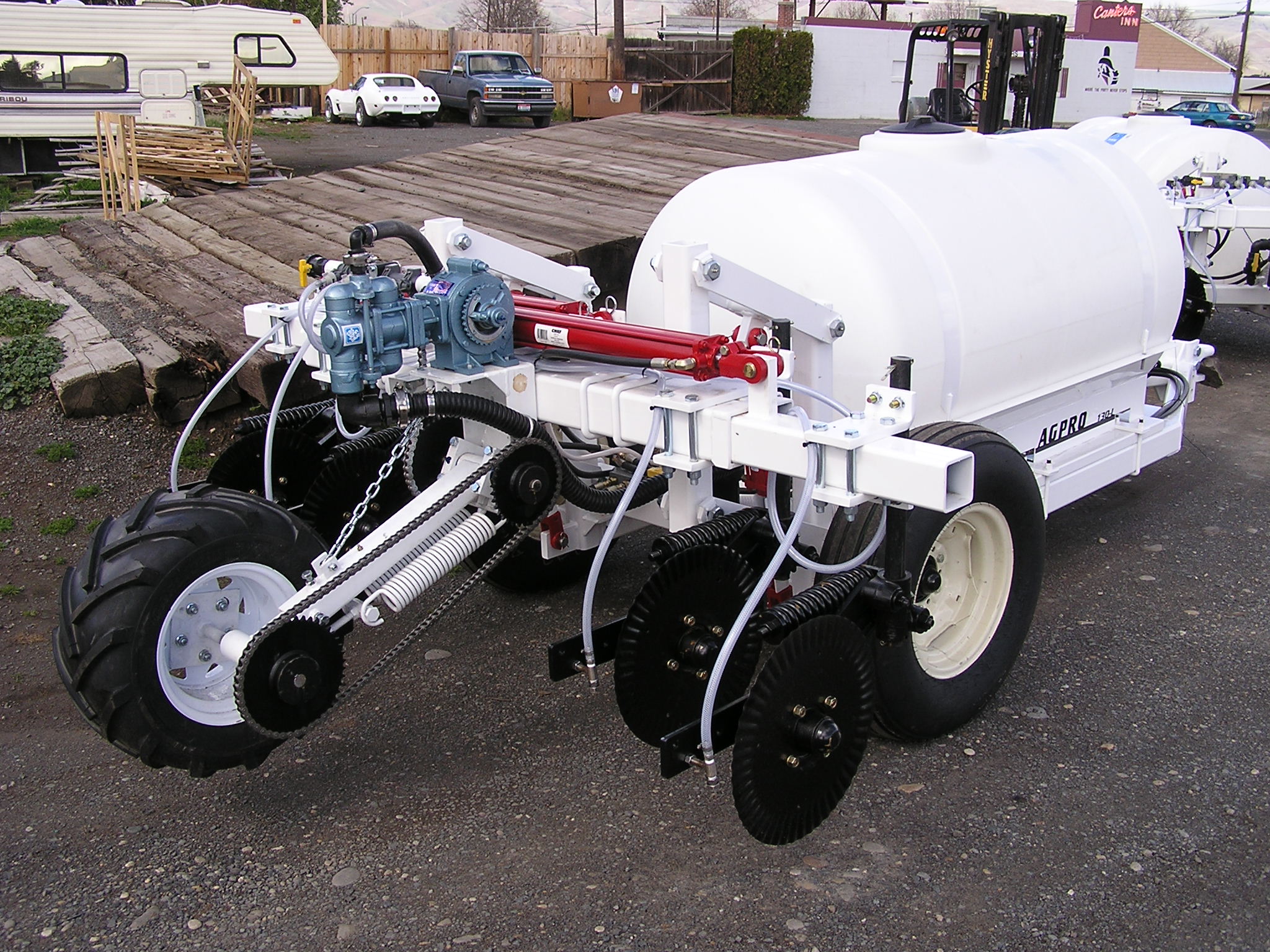

AGPRO 130-L Liquid Fertilizer Applicator - Back View
AGPRO 130-L – Back View

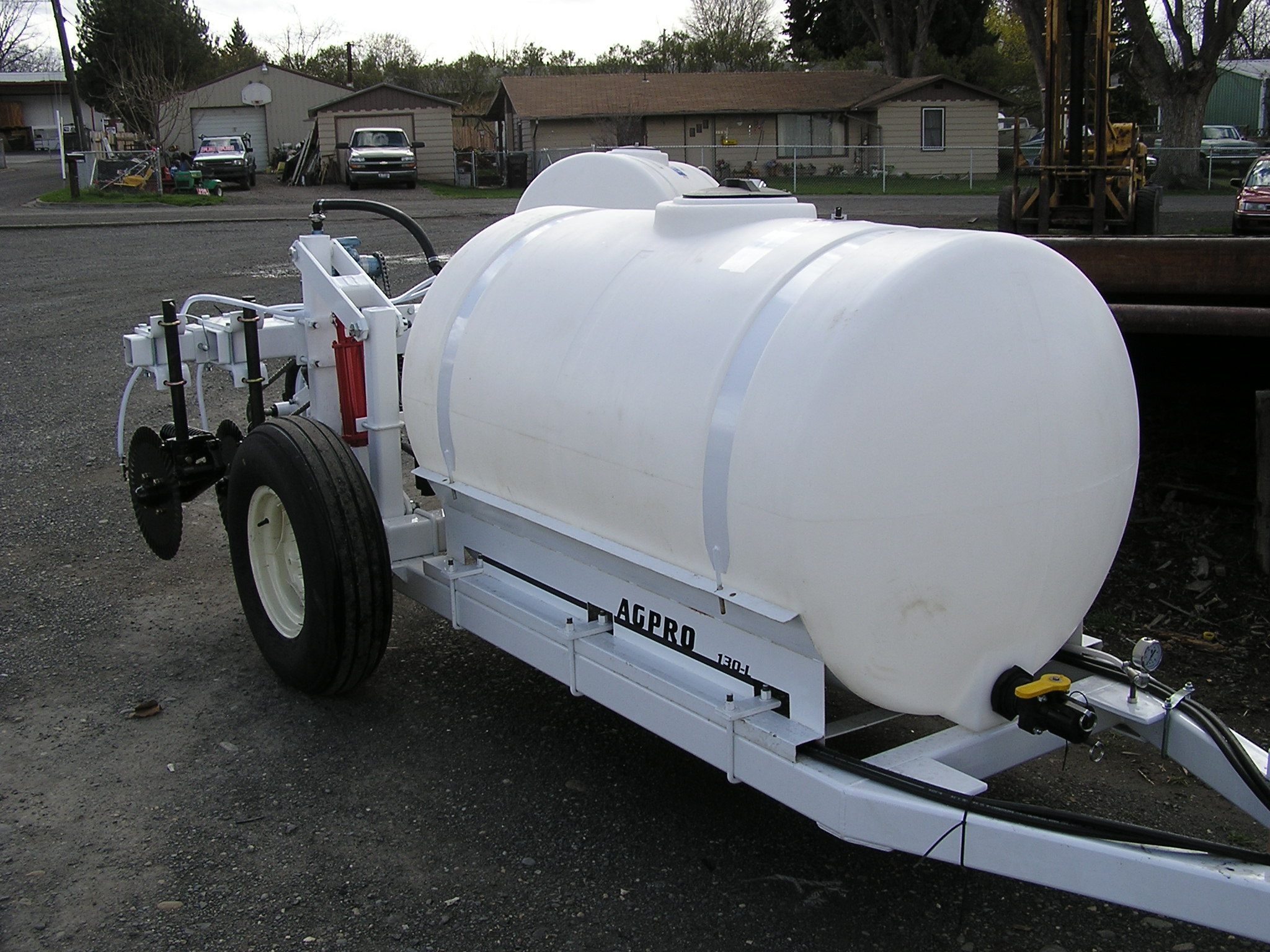

AGPRO 130-L Liquid Fertilizer Applicator
AGPRO 130-L

130-L Options

  • Mechanical tank agitator keeps products in suspension.
  • Mid-Tech AgLogic control system allows on the go rate changes with computer accuracy.
  • PTO hydraulic pumping package includes reservoir and remote switch box to operate hydraulic cylinders.
  • Fertilizer knife assemblies (available with or without coulters) allow deeper banding with minimal disturbance.
  • Other specialized toolbar configurations and limb deflectors are available.
